Pipe Leak in Burbank

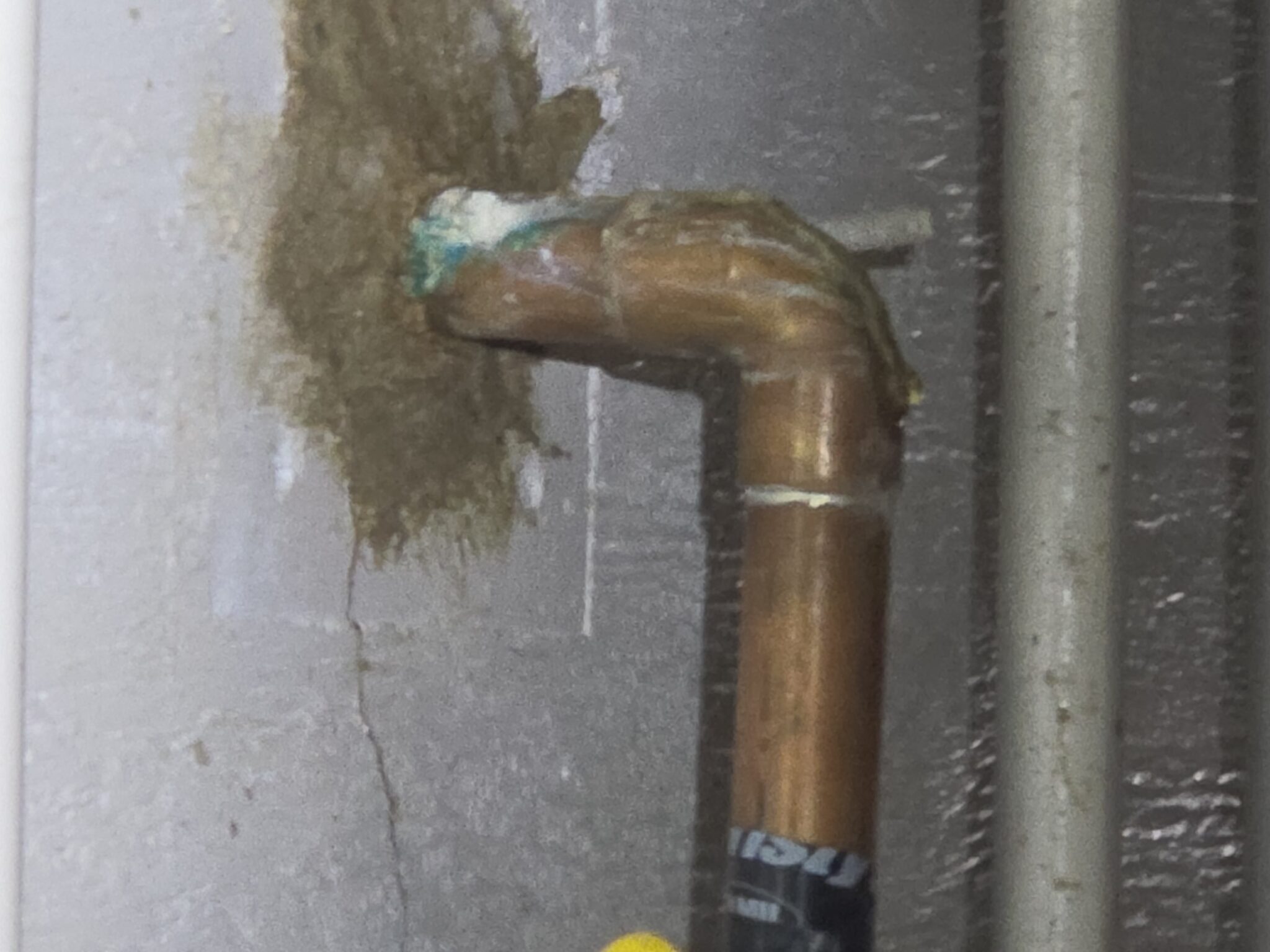

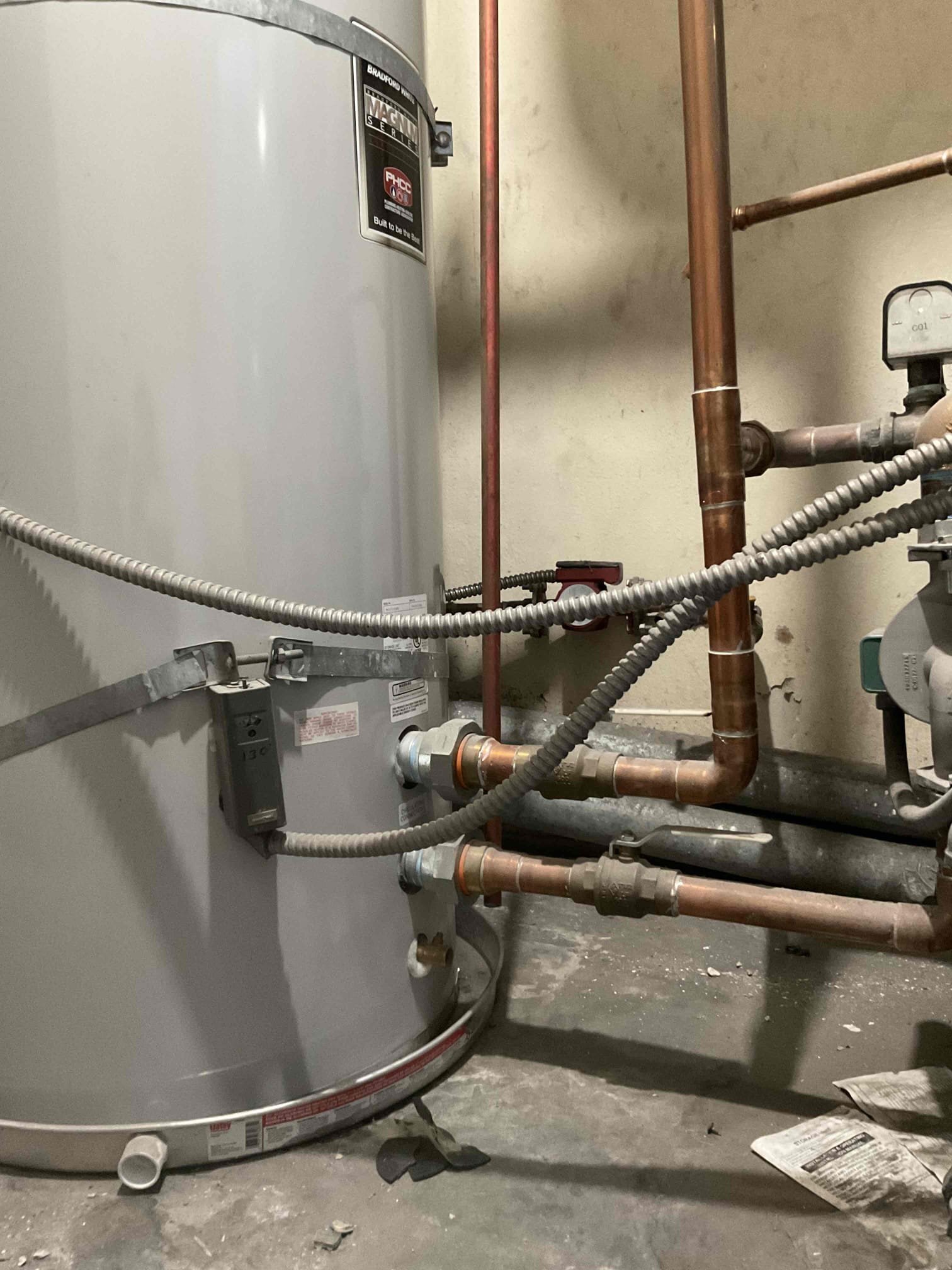

During this service call in Burbank, our team inspected a gas-fired water heater system showing signs of age and moisture exposure. The copper supply piping displayed oxidation and verdigris at connection points, with visible corrosion on the copper elbow joint where the leak was occurring. The system included an expansion tank, shut-off valves with yellow tags, flexible braided supply lines, and properly angled PVC vent ducting.

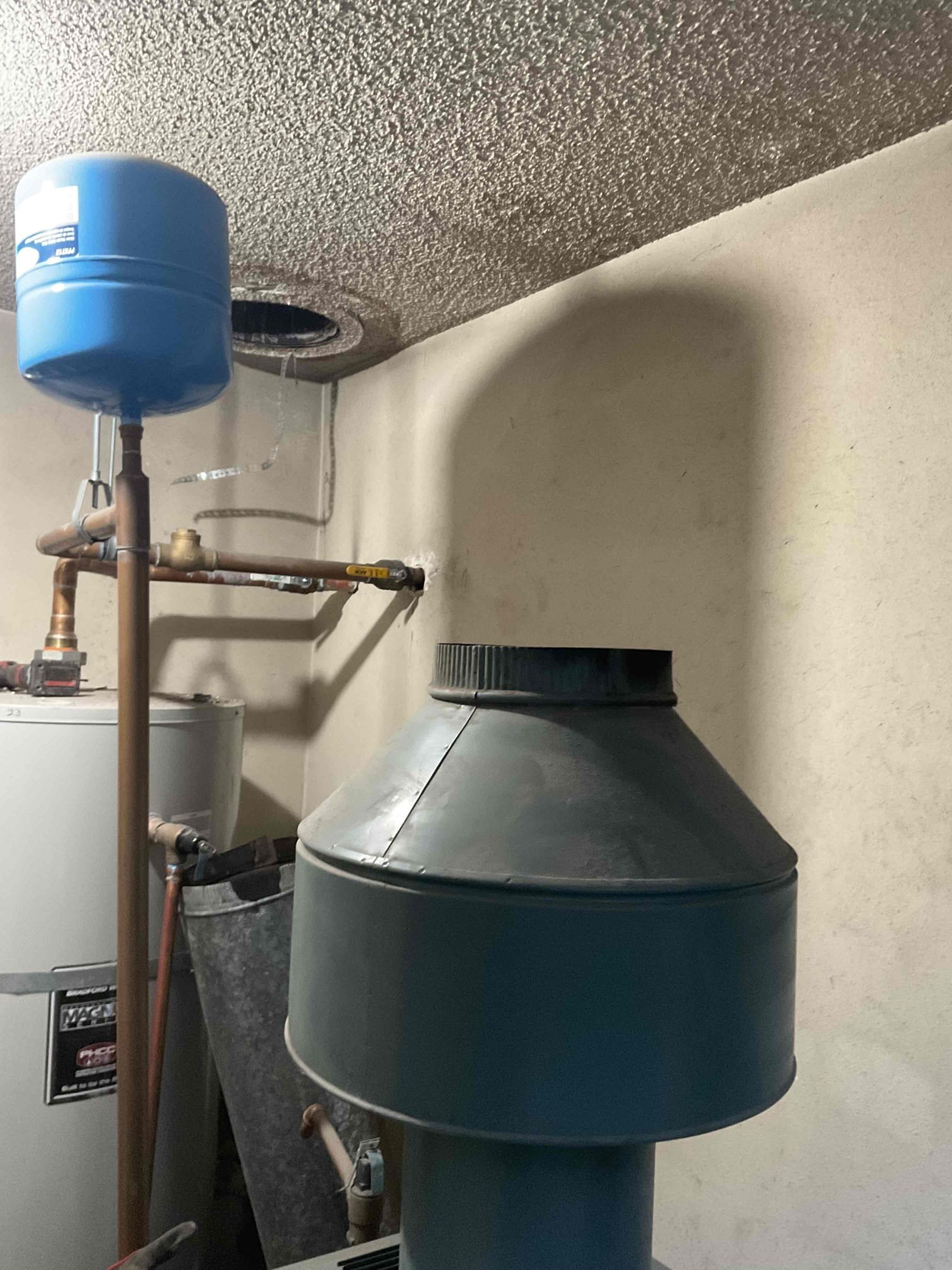

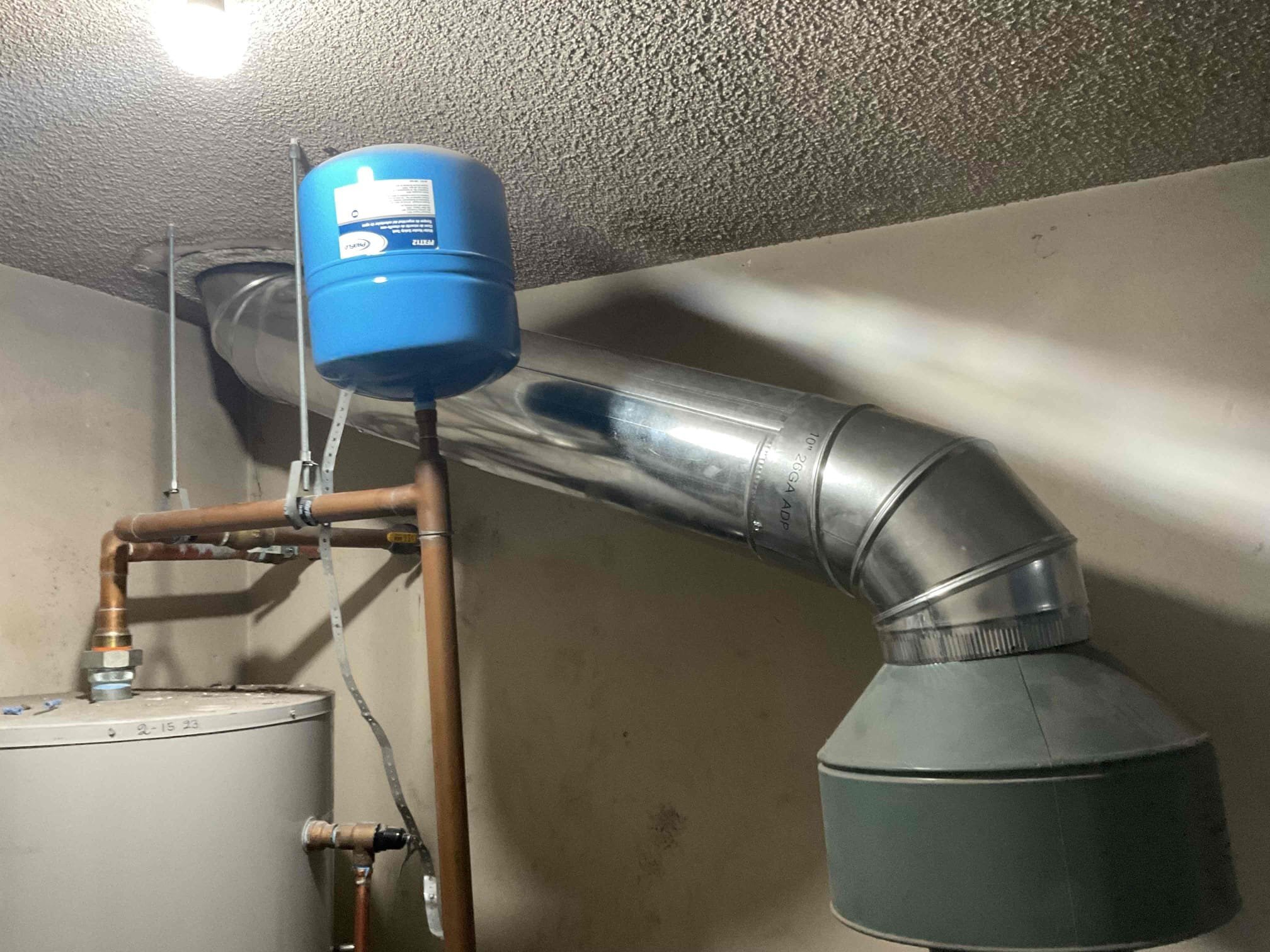

The source of the leak was traced to compromised copper connections that had deteriorated over time. Our technician addressed the affected area and verified that all piping connections were secure with proper fittings. The expansion tank—a blue unit mounted in the correct position above the water heater—was inspected and confirmed to be functioning properly. Shut-off valves and the pressure relief valve on the water heater were tested to ensure system integrity.

Upon completion, the water heater system was operational with all components properly installed and secured. The drainage configuration for the PVC ductwork remained properly angled, and the support strapping for the piping was confirmed to be in place. The customer’s hot water system is now functioning without active leaks, and all safety devices are in working order.

We recommend monitoring the copper piping in future years, as oxidation at connection points can indicate ongoing moisture exposure. Regular inspection of the pressure relief valve and expansion tank will help catch any issues early.

Pipe Leak in Burbank — completed work

Pipe Leak in Burbank — detail 2

Pipe Leak in Burbank — detail 3

Pipe Leak in Burbank — detail 4

Pipe Leak in Burbank — detail 5

Pipe Leak in Burbank — detail 6
